Infra-red Combustible Gas Sensor, 100% LEL

Infra-red Combustible Gas Sensor, 100% LEL

MIPEX SENSOR
FOR METHANE/HYDROCARBONS
Type MIPEX-02-X-X-X.1

FEATURES

  • Can be used to measure methane from 0 to 100%. Has equal performance to a 0-5%
    volume methane sensor and a 0-100% volume methane sensor, if calibrated;
  • Providing linearized, temperature-compensated measurements;
  • Digital output for direct interface to host circuitry;
  • The storage of calibration, temperature compensation and linearization data;
  • Ultra low power consumption less then 5 mwatts.

DESCRIPTION

Optosense sensors operate by using the NDIR principle.
The sensor contains LED having optimized radiation spectrum with special signal processing
algorithm, an optical system, photo diodes specially developed for this project based on PbSe
CdSe thin films, an imbedded temperature sensor and electronics to process the signals.
Communications with instrument electronics are provided via digital output in UART format.

EXPLOSION PROTECTION

Type and level of the transducer explosion protection corresponds to
- ExiI Ma/Ex iII Ga
in accordance to IEC600790:2007, IEC6007911:2006.
- IM E ExiI Ma/II 1G E Ex iII Ga
in accordance to EN600790:2009, EN6007911:2007
- Class I, Division1, Group A,B,C,D
in accordance toUL913 7th Edition.
-Ex i I U / Ex ia IIC U
in accordance to GOSTR 52350.0 (IEC600790:2004), GOSTR 52350.11 (IEC60079 11:2006)

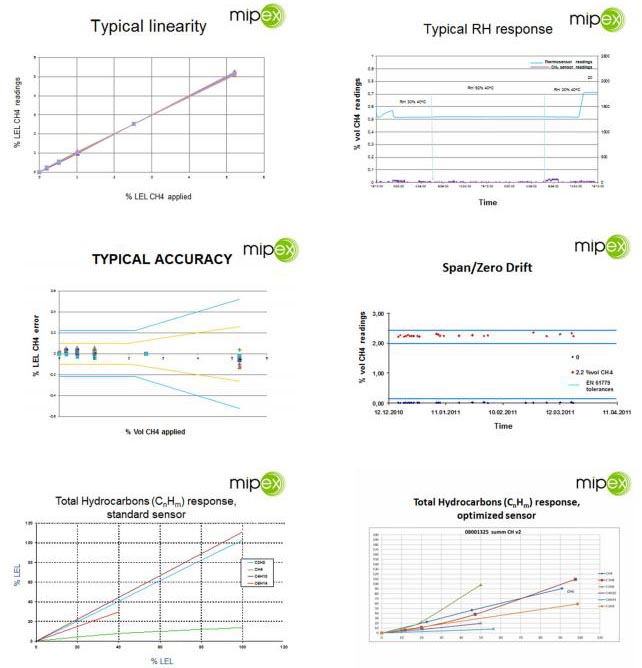

METROLOGICAL PERFORMANCE




GENERAL SPECIFICATION FOR BASE MODELS

Value/model MIPEX-02-1-II-1.1 MIPEX-02-2-II-1.1 MIPEX-02-1-I-1.1 MIPEX-02-1-I-2.1
Operating Voltage Range 3.0 - 4.5 V d.c.
Operating Current 1 mA
Operating temperature range -40C to +60C -10C to +40C
Warm up time 1 minute @ 20C ambient
Storage temperature range -50C to +60C
Humidity range 0 to 98% @ 40C ambient
Digital signal format 8 data bits, 1 stop bit, no parity.
Life time Not less then 10 years
Weight 16.6 grams
Calibrating gas Methane Propane Methane Methane
Gas measuring range 0 ─ 5% vol.
(0 ─ 100% vol.)
0 ─ 100% LEL. 0 ─ 5% vol.
(0 ─ 100% vol.)
0 ─ 5% vol.
(0 ─ 100% vol.)
Accuracy in measuring range 0.1% vol. or 5 % of reading (whichever is greater) @ 20C, 1 bar pressure. 3%LEL or 5 % of reading (whichever is greater) @ 20C, 1 bar pressure. 0.1% vol. or 5 % of reading (whichever is greater) @ 20C, 1 bar pressure. 0.1% vol. or 5 % of reading (whichever is greater) @ 20C, 1 bar pressure.
Response Time T90 <30s <10s

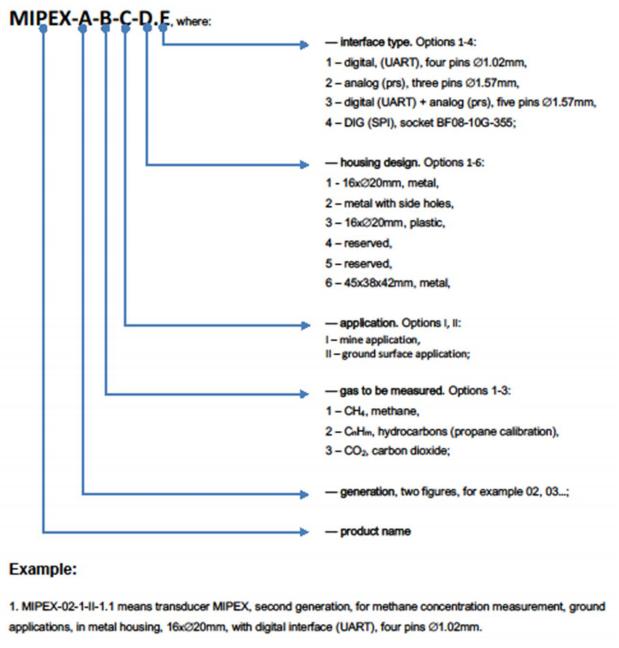

Universal abbreviation to notate models

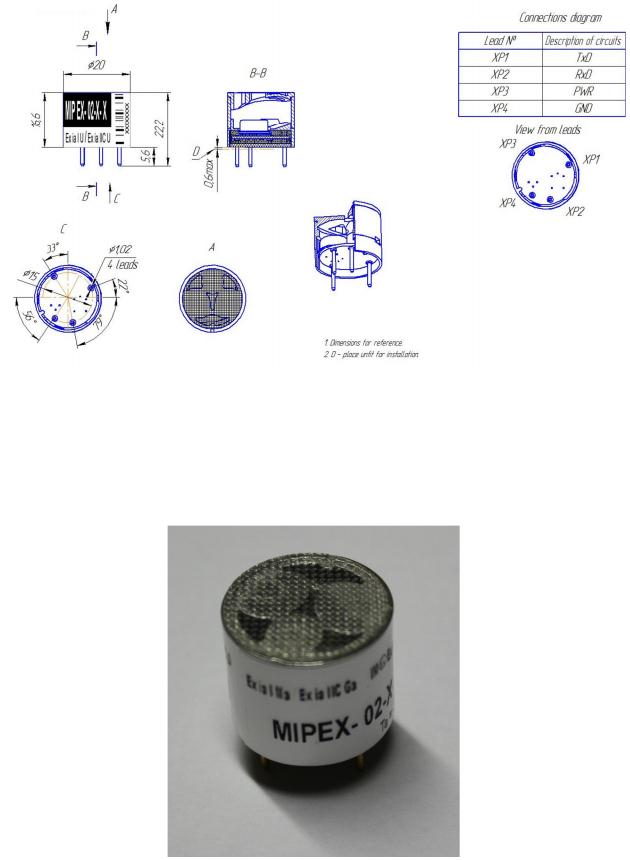

MECHANICAL DETAILS




MST IT GmbH
Wilhelm-Hertz-Str. 14; 80805 München, Germany
Tel.: +49-89-72999997; Fax: +49-89-266291
e-mail: mst.intertrade@t-online.de www.mst-it.com/eng
